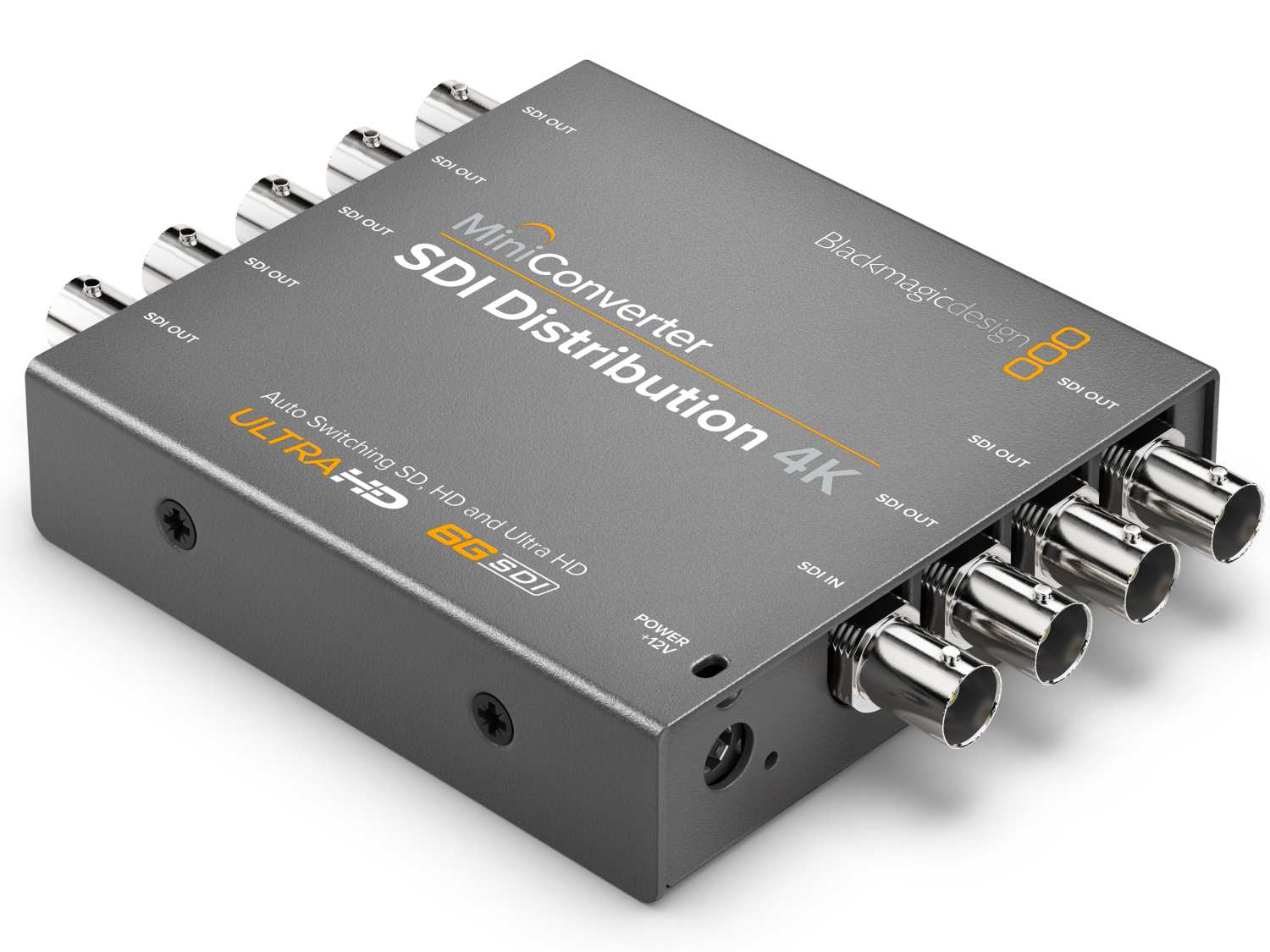

Blackmagic Mini Converter - SDI Distribution 4K

1.880,00 lei RON
1.880,00 lei RON
Tax included.
Brand: Blackmagic Design
Availability: In stock
SKU: BM-CONVMSDIDA4K

Acest dispozitiv poate distribui o singura conexiune SD sau HD-SDI pentru pana la 8 iesiri SDI diferite in acelasi timp. Ofera un design complex, cu iesiri cu re‑clock complet si comutare automata intre toate formatele SD‑SDI, HD‑SDI, 3G‑SDI si 6G‑SDI de pana la 1080p60. In plus, ofera suport pentru toate formatele ASI, auxiliare si audio embedate.

Formate video

Standarde video SD

525i59.94 NTSC, 625i50 PAL

Standarde video HD

720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30, 1080p50, 1080p59.94, 1080p60

Standarde video 2K

2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF

Standarde video Ultra HD

2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30

Standarde video 4K

4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p

Compatibilitate SDI

SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M‑B, SMPTE 425M, SMPTE ST‑2081

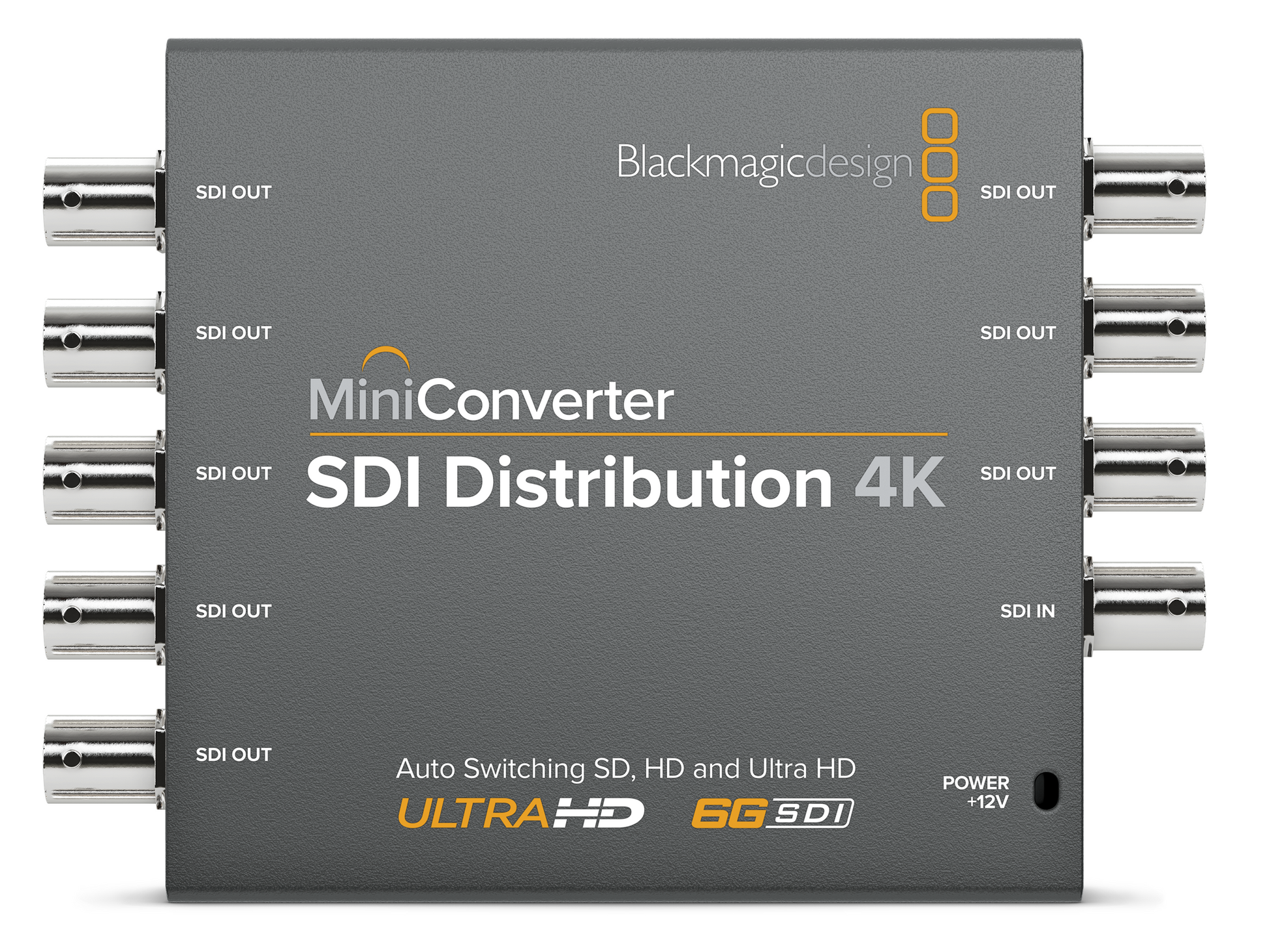

Intrari
1 x SDI. Comutabil intre SD, HD si 6G‑SDI
Iesiri
8 x SDI
Alimentare
+12V-31V DC
Dimensiuni
122 x 92 x 23 mm
