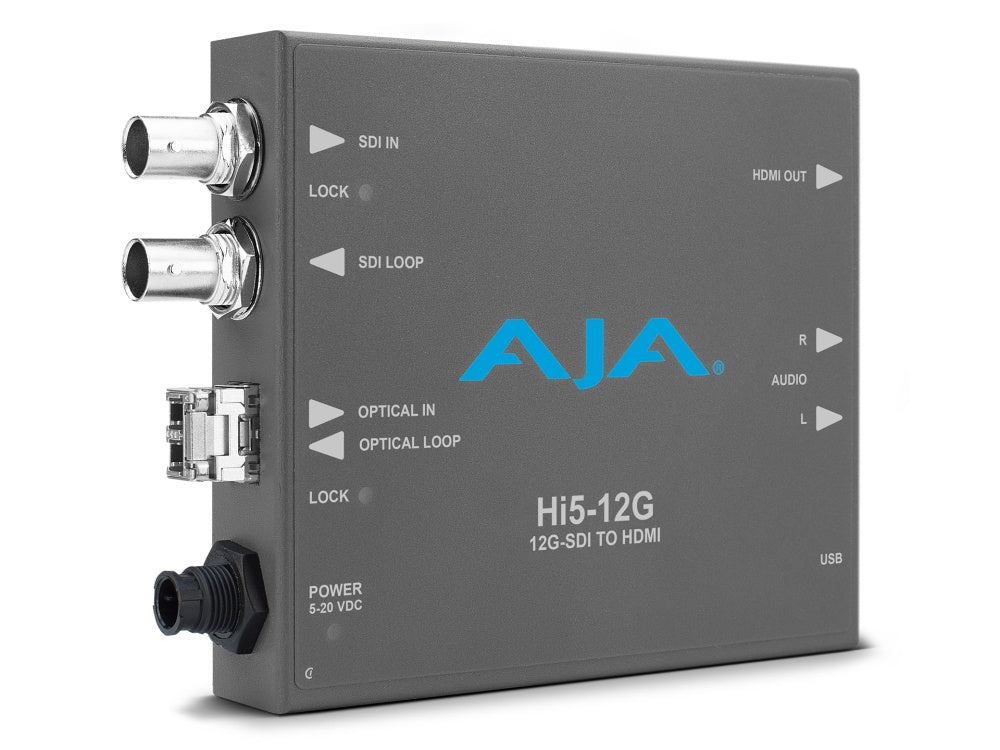

Mini convertor 12G-SDI la HDMI AJA Hi5-12G-R
Couldn't load pickup availability
AJA Video Systems lanseaza un mini-convertor de la HDMI 2.0 la 12G-SDI, model disponibil in 3 configuratii, cu sau fara SFP-uri de fibra. Noile mini-convertoare fac stream de continut de inalta rezolutie si frame rate ridicat pe distante lungi. Reprezentand urmatoarea generatie de dispozitive Hi5-4K-Plus, AJA Hi5-12G converteste semnalul de intrare single-link 12G-SDI 4K/UltraHD/2K/HD cu 8 canale de audio digital embedat intr-un semnal de iesire HDMI 2.0 cu 2 sau 8 canale audio.
AJA Hi5-12G poate, de asemenea, sa genereze metadata HDR in concordanta cu standardul HDMI v2.0b/CTA-861-G. Dispozitivul este compact si beneficiaza de o intrare 12G-SDI single-link cu o iesire SDI in loop, cu re-clock, pentru o monitorizare mai simpla sau trecere printr-un flux SDI.
Variantele Hi5-12G echipate cu SFP pentru fibra includ receptorul Hi5-12G-R, ce extinde semnalul HDMI 4K pe distante lungi fie de la o sursa conectata SDI fie de la una pe fibra, si transmitatorul/ receptor Hi5-12G-TR, ce livreaza semnal 4K/UltraHD pe sursa SDI sau fibra catre o destinatie HDMI cu ocolire a sursei prin SDI sau fibra catre o destinatie secundara. Modelele Hi5-12G includ un alimentator DWP-U si un port USB pentru update-uri de firmware.
| Formate video sustinute |
DCI 4K: 4096 x 2160p UHD 4K: 3840 x 2160p 2K: 2048 x 1080p HD: 1920 x 1080p HD: 1920 x 1080i HD: 1280 x 720p HD: 720 x 576p HD: 720 x 576i HD: 720 x 480p HD: 720 x 480i |
| Intrari |
12G Fibra: 1 x fibra LC SMPTE-2082/2081/424/297/292/259 12G/HD/SD-SDI: 1 x BNC SMPTE-2082/2081/424/292/259 |
| Rezolutii pe intrare sustinute | 4096 x 2160: 60/59.94/50/30/29.97/25/24/23.98 3840 x 2160: 60/59.94/50/30/29.97/25/24/23.98 2048 x 1080: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 59.94 480i: 59.94 |
| Iesiri |
12G/HD/SD-SDI: 1 x BNC SMPTE-2082/2081/424/292/259 |
| Rezolutii pe iesire sustinute | 1 x 12G-SDI: 4096 x 2160: 60/59.94/50/30/29.97/25/24/23.98 3840 x 2160: 60/59.94/50/30/29.97/25/24/23.98 1 x 6G-SDI: 4096 x 2160: 30/29.97/25/24/23.98 3840 x 2160: 30/29.97/25/24/23.98 1 x 3G-SDI (nivel A sau B dual-link): 2048 x 1080p: 60/59.94/50/30/29.97/25/24/23.98 2048 x 1080PsF: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p*: 60/59.94/50 1 x 1.5G-SDI: 2048 x 1080p: 30/29.97/25/24/23.98 2048 x 1080PsF: 30/29.97/25/24/23.98 1080p: 30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 1 x 270 Mb SDI: 625i: 50 525i: 59.94 |
| Intrare audio digitala | Audio embedat: 24 biti, 8 canale |
| Intrare audio analogica | 2 x RCA, 2 canale, -10 dBu (nominal) |
| Iesire audio digitala | Audio SDI embedat: 24 biti, 8 canale |
| Alimentare | 5-20 VDC regulat, 11 W |
| Dimensiuni |
11.7 x 10.2 x 2.3 cm |
